Crush-Proof Cables Channel Signals to 50 GHz

June 12, 2019

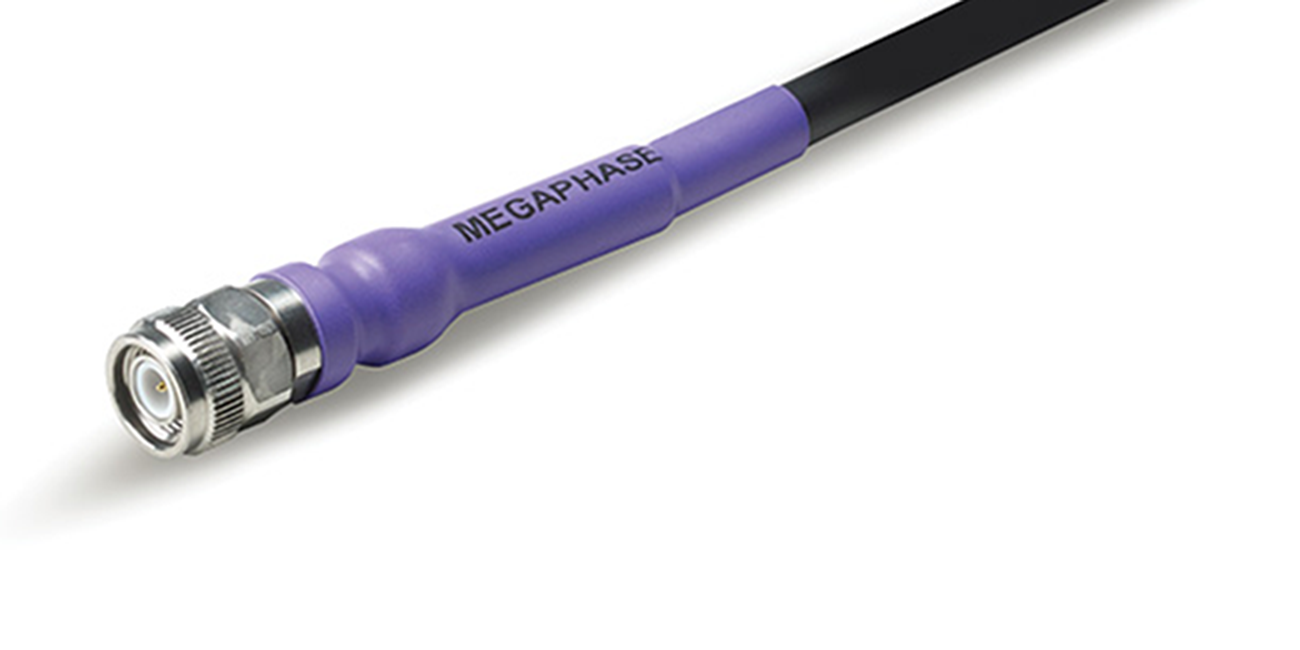

A rugged coaxial cable is available as cable alone or as cable assemblies with connectors of choice for applications through 50 GHz.

Jack Browne

Related To: Microwaves & RF

Designed for applications from dc to 50 GHz, the Warrior Cable line of coaxial cables and cable assemblies are rugged and crush-proof, maintaining stable amplitude and phase performance under vibration and shock conditions. The cables feature a GrooveTube Copper outer conductor, solid gold-plated copper inner conductor, and PTFE tape dielectric. The cables (alone) achieve shielding effectiveness of better than 110 dB with propagation velocity of 69%. The cables have a static bend radius of 3.81 cm and an operating temperature range of −55 to +135°C. A wide range of coaxial connectors are available for cable assemblies (frequency-dependent) including Type N, SMA, BNC, 3.5-mm, 2.9-mm, 2.4-mm, and 12.85-mm connectors. All Warrior cable assemblies are 100% tested for S-parameter performance and each cable assembly is serialized.

MegaPhase, 122 Banner Rd., Stroudsburg, PA 18360-6433; (877) 634-2742, (570) 424-8400, E-mail: [email protected].
