High-Power Amp Covers 27.5 to 31 GHz in Satcom, 5G Apps

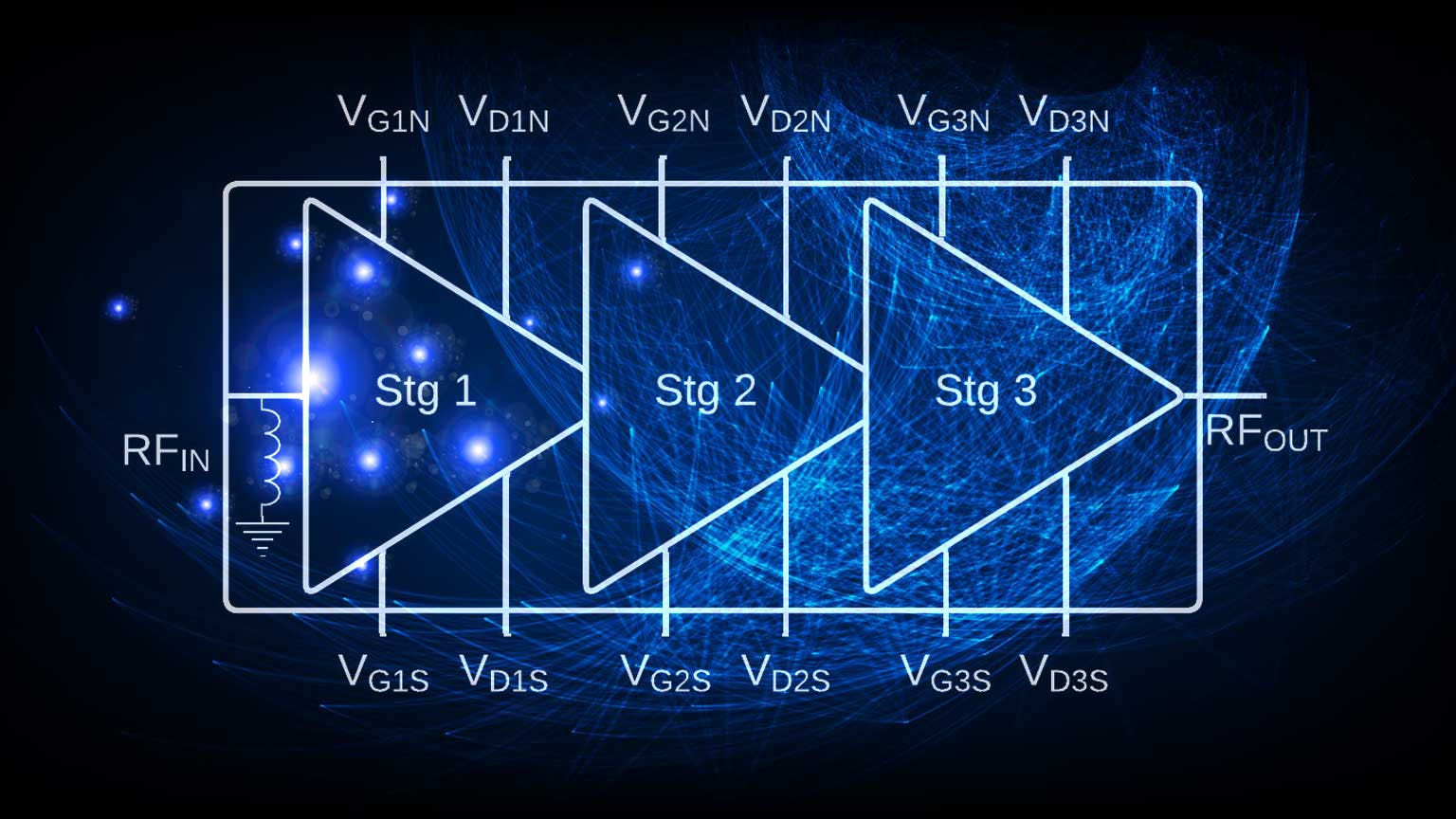

United Monolithic Semiconductors' CHA8265-98F is a three-stage, high-power amplifier operating between 27.5 and 31 GHz. It typically provides 25 W of saturated output power associated to 30% of power-added efficiency (PAE) at a 25-V drain voltage. The amplifier delivers 10 W of linear power with a –25-dBc IMD3 and PAE better than 25%.
The device, dedicated to satellite communications and 5G applications, is well-suited for a wide range of microwave applications and systems. The circuit is manufactured on a robust GaN-on-SiC (gallium nitride-on-silicon carbide) HEMT process and comes in bare-die form with a chip size of 3.6 × 3.6 mm2.
Amplifier input and output are matched at a 50-Ω impedance. The drain bias range, from 18 to 25 V, offers a saturated output power from 15 to 25 W.
