2.7-GHz Spectrum Analyzers Travel Readily to Field Operations

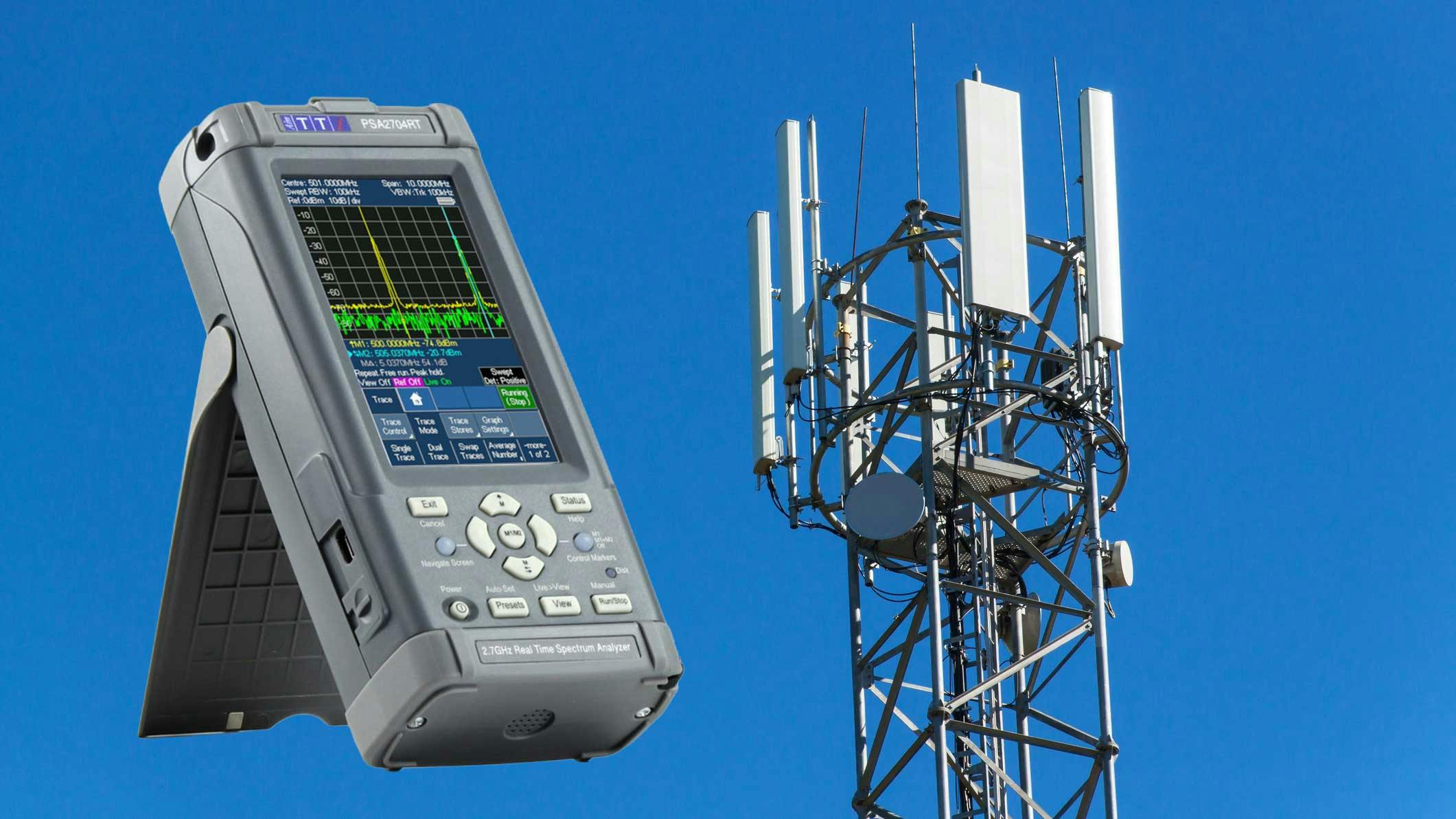

If you’re interested in test-and-measurement gear that’s useful on the bench but isn’t anchored there, Saelig Co. now offers the Aim TTi PSA Series 4 handheld spectrum analyzers. These instruments are the latest in the Aim TTi line, introducing real-time signal capture alongside classic swept and fast-swept fast Fourier transform (FFT) modes.
Designed to meet the rapid pace of modern RF design, telecommunications debugging, and wireless field testing, the Series 4 lets bench techs and field personnel alike instantly and reliably identify transient, intermittent, and frequency-hopping signals that escape conventional swept analyzers. The three models in the series include: PSA1304 (1 MHz to 1.3 GHz), PSA2704 (1 MHz to 2.7 GHz), and PSA2704RT (1 MHz to 2.7 GHz real-time).
The key feature on the flagship PSA2704RT is its powerful real-time FFT analysis mode, which captures up to 80,000 FFTs per second for true real-time performance. Offering a 10.8-MHz real-time bandwidth and a frequency range of up to 2.7 GHz, the PSA2704RT analyzer delivers a 100% probability of intercept (POI) for transient signals lasting as briefly as 37.5 µs. This capability provides a gap-free, continuous observation window of the spectrum.
Furthermore, through advanced swept-FFT stitching, the Series 4 analyzers accelerate full-span coverage exponentially, completing a 100-MHz span with a precise 10-kHz resolution filter in roughly 70 ms. This represents a stark contrast to the 13.5 seconds required by traditional hardware.
The Series 4 instruments offer a comprehensive suite of highly visual display formats. Users can dynamically toggle between full, combined, or split-screen layouts incorporating live traces, waterfall plots, and 3D heatmaps. For complex signal tracking, the system supports advanced multi-mode, zero-span configurations, allowing for concurrent rendering of amplitude versus time, amplitude depth versus time, and frequency deviation versus time.
These visualization modes are augmented by AM/FM audio demodulation, seven distinct detector modes, and programmable Frequency Mask Triggering to automatically capture and log elusive spectral anomalies.
Engineered for field mobility and harsh operational environments, the PSA Series 4 comes housed in a compact (7.6 × 3.6 × 1.9 in.) enclosure weighing just 1.28 lbs.
The instruments are equipped with ruggedized integrated rubber bumpers, an internal lithium-ion battery supporting up to four hours of continuous cordless operation, and a multi-position tilt stand that transitions into a rigid screen protector and sun shield for optimal outdoor visibility. Their bright, 4.3-in. backlit color touchscreen is driven by an optimized menu architecture that supports effortless one-handed operation.
Typical applications include interference analysis, antenna alignment and optimization, signal-strength mapping, covert transmitter detection, spurious-emission checks, EMC site and pre-compliance survey, Wi-Fi setups, and more.
