    A pH Sensor Reference Design Enabled for Wireless Transmission (Part 2) (.PDF Download)

    Aug. 16, 2019
    A pH Sensor Reference Design Enabled for Wireless Transmission (Part 2) (.PDF Download)

    Continuing where Part 1 left off, the next area to dive into is the processor unit or microcontroller (MCU), which is at the heart of the RF system (see figure). It processes data and runs software stacks interfaced to a transceiver for RF transmission and to a pH reference design (RD) board for sensor measurement.

    Mwrf Com Sites Mwrf com Files A P H Sensor Fig

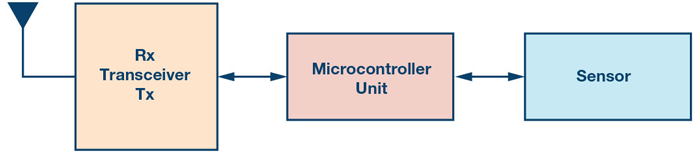

    Shown is a wireless sensor data-acquisition and transmission block diagram.

    Download
