Web-Based Antenna Integration Tool Leads Designers to the Right Choice
You can get everything else right in an RF-capable system, but making the wrong choice with the antenna will render the rest of the work moot. A poor antenna selection can cause signal attenuation, impedance mismatches, curtailed range, and shortened battery life.

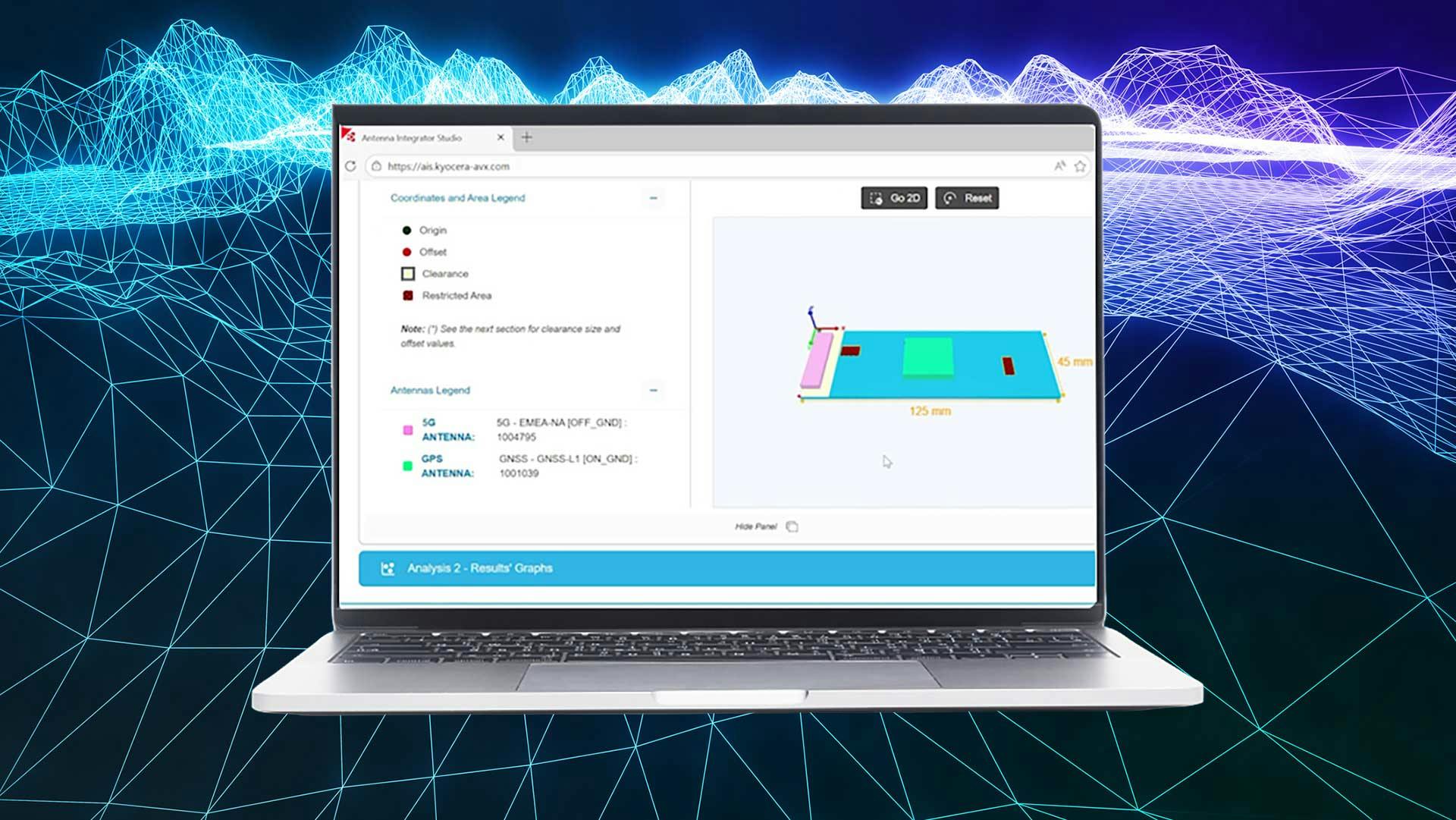

To give RF design engineers a helping hand, Kyocera AVX launched its Antenna Integrator Studio (AIS), a web-based RF engineering tool that's said to streamline, accelerate, and optimize antenna selection and placement.
Armed with the AIS tool, it’s hoped that users can avoid guesswork and poor design outcomes. This is critical in markets that must deal with tight performance, space, and environmental constraints, including the consumer electronics, automotive, medical, industrial IoT, telecommunications, and high-speed networking industries.
Users simply enter a PCB size and the amount of required antennas. After specifying the target frequency bands, users choose their optimization priority — maximized efficiency or minimized cost — and click Analyze to learn the most suitable antenna(s) from Kyocera’s extensive selection as well as the best positions on the PCB.
Those results are coupled with interactive performance charts. Analyzing the results in detail provides evaluations of efficiency, return loss, peak gain, and radiation patterns across frequency bands.
The tool also offers downloadable DXF and 3D files for seamless PCB integration. On top of that, the Antenna Integrator Studio makes it easy to order samples and begin prototyping. Included is a roughly four-minute video tutorial that walks users through a workflow to further enhance ease of use.
This first version of the new KYOCERA AVX Antenna Integrator Studio has thousands of simulations of board-mounted embedded antennas. Future versions will offer additional features and antenna technologies.
