Compact, Directional Coupler Offers Nominal Coupling of 6 dB

Oct. 7, 2014
KRYTAR’s Model 181206 is a directional coupler operating over the 12.4 to 18.0 GHz frequency range

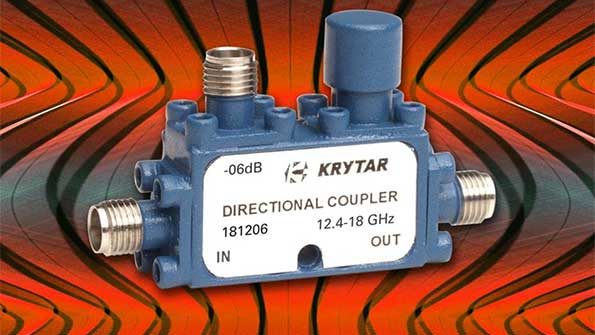

KRYTAR’s Model 181206 is a directional coupler operating over the 12.4 to 18.0 GHz frequency range. Model 181206 delivers 6 dB (±0.5 dB) of nominal coupling (with respect to output) and a frequency sensitivity of ±0.30 dB. Directivity is >15 dB with insertion loss of <1.9 dB across the full frequency range including coupled power. All ports have a maximum 1.35 VSWR; input power is 20 W average and 3 kW peak. The operating temperature is -54°C to +85°C. Designed for system applications where external leveling, precise monitoring, signal mixing, or swept transmission and reflection measurement are required the coupler provides the necessary performance in a compact package—1.4-in. (L) x 0.40-in. (W) x 0.66-in. (H).

KRYTAR; 1288 Anvilwood Avenue, Sunnyvale, CA 94089, 1-(408)-734-5999
