ARRAs Power Divider

Power Divider Links 5 To 500 MHz

Feb. 24, 2014
This compact coaxial power divider is supplied with Type-N connectors for applications to 500 MHz.

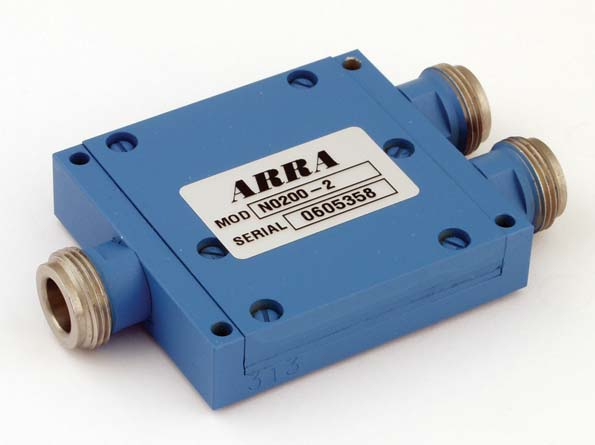

Model N0200-2 is a two-way power divider/combiner with Type-N female coaxial connectors for applications from 5 to 500 MHz. It is rated for 20 W average power and 1 kW peak power over that frequency range, and provides at least 23-dB isolation between ports while suffering 0.5 dB or less insertion loss. It also shows maximum VSWR is 1.30:1. The power divider/combiner, which measures 2.22 × 2.0 × 0.50 in., is constructed with an aluminum body and connectors meeting MIL-C-39012 requirements. It achieves amplitude balance of ±0.2 dB between ports and phase balance of ±2 deg.

ARRA, Inc., 15 Harold Ct., Bay Shore, NY 11706-2296; (516) 231-8400, FAX: (516) 434-1116.
