Coaxial Amplifier Gains 0.5 to 18.0 GHz

Dec. 21, 2014
This broadband amplifier provides flat, 25-dB gain from 500 MHz to 18 GHz.

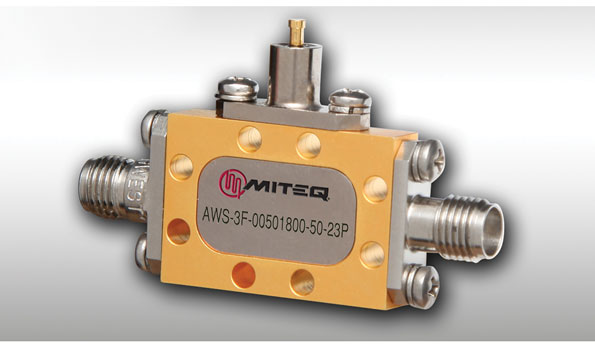

Model AWS-3F-00501800-50-23P is a hermetic, single-bias coaxial amplifier with more than 25-dB small-signal gain from 0.5 to 18.0 GHz. It achieves gain flatness of ±1.5 dB or better across that wide frequency range, with minimum output power of +23 dBm at 1-dB compression. The maximum noise figure is 5 dB. The RoHS-compliant amplifier, which is supplied with field-replaceable SMA connectors, measures just 1.00 × 0.66 in. in a slim-profile Kovar housing. It can operate with base plate temperatures from -40 to +75°C and typically draws 450 mA current from a single +12-VDC supply.
