Spectrum-Analyzer Software Toolkit Adds Free Multichannel I/Q Analysis

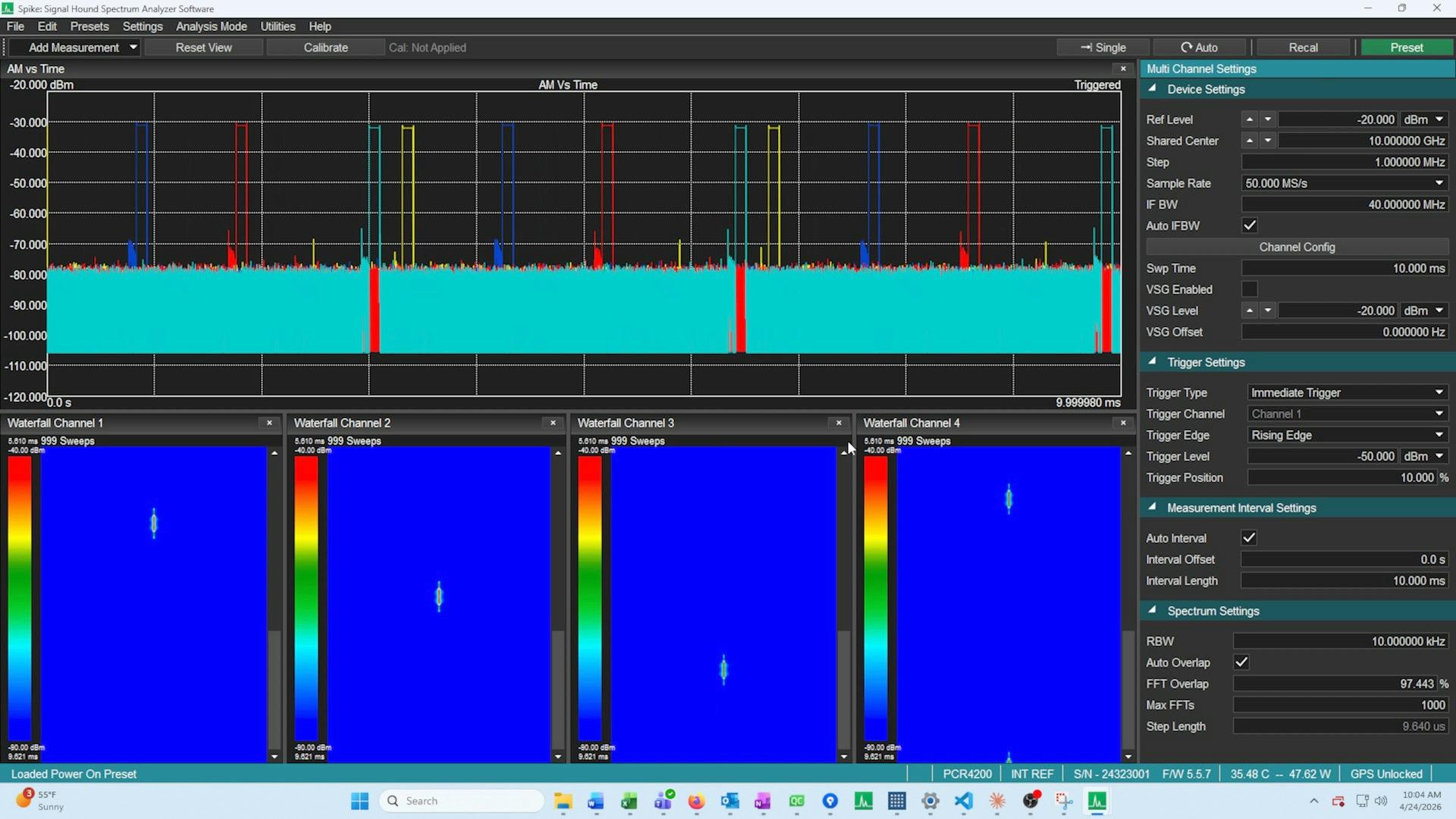

Signal Hound’s Spike spectrum-analyzer software, already a highly capable package, is now augmented by multichannel, phase-coherent I/Q analysis capabilities. The I/Q analysis mode incurs no additional cost and is fully compatible with the company’s PCR4200 multichannel receiver.
The instrument provides synchronized time and spectrum analysis across up to four channels, enabling users to visualize up to 40 MHz of bandwidth per unified plot for enhanced signal visibility and measurement confidence. It simplifies workflows and improves measurement accuracy in applications like validating system-level phase and amplitude performance, or streamlining calibration for MIMO and beamsteering systems.
The PCR4200’s onboard vector signal generator (VSG) can act as a phase-coherent CW source with a customizable ±20-MHz offset to support multichannel measurements. The Spike software enables easy calibration of amplitude, phase offset, and phase delay across the entire signal chain, not just the receiver.
Time-synchronized markers on each channel allow for precise channel-to-channel phase and amplitude delta measurements. Users can choose from several plot types, including Time Overview, AM vs. Time, PM vs. Time, Phase Delta vs. Time, Spectrum, and Waterfall to suit diverse analysis needs.
Multichannel analysis is available as a download of the latest release of Spike (version 4.0.13).
