Vector Signal Generator Spans 100 kHz To 6 GHz

May 7, 2013
These vector signal generators are available with modulation bandwidths of 160 MHz for carrier frequencies to 6 GHz.

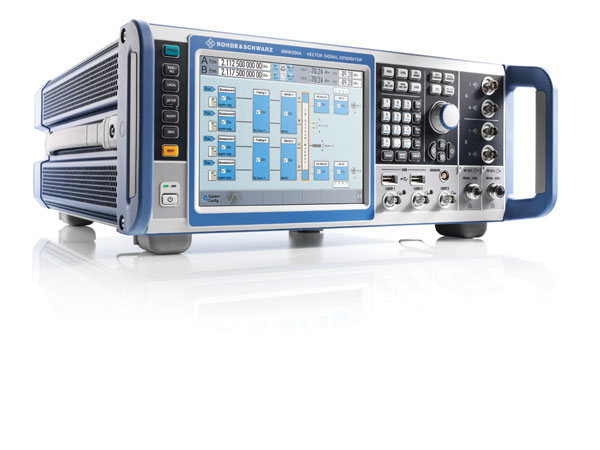

Model SMW200A is an RF/microwave vector signal generator (VSG) that combines a baseband generator, RF/microwave generator, and multiple-input, multiple-output (MIMO) fading simulator in one box. Available in versions covering frequency ranges from 100 kHz to 3 GHz and 100 kHz to 6 GHz, the high-performance VSG boasts an in-phase/quadrature (I/Q) modulation bandwidth of 160 MHz which is supported by the internal baseband generator. Since some wireless applications require testing with more than two RF/microwave signal sources, the test signal source can be equipped with an optional second RF/microwave signal path to 6 GHz, as well as a maximum of two baseband modules and four fading modules for generation of complex test signals. It is suitable for recreating advanced signal scenarios, including 2x2 MIMO for LTE-Advanced wireless applications and 8x2 MIMO for TD-LTE wireless applications. The signal generator, which features an intuitive touchscreen for ease of control, features excellent spectral purity, with typical single-sideband (SSB) phase noise of -139 dBc/Hz offset 20 kHz from a 1-GHz carrier.

Rohde & Schwarz USA, Inc., 8661A Robert Fulton Dr., Columbia, MD 21046-2265; (888) TEST-RSA (888-837-8772), (410) 910-7800, FAX: (410) 910-7801, e-mail: [email protected], www.rohde-schwarz.us.
