Probers Test Through 50 GHz

Oct. 18, 2013
A line of high-frequency test probers supports measurements on analog and digital circuits and components through 50 GHz.
Download this article in .PDF format
This file type includes high resolution graphics and schematics when applicable.

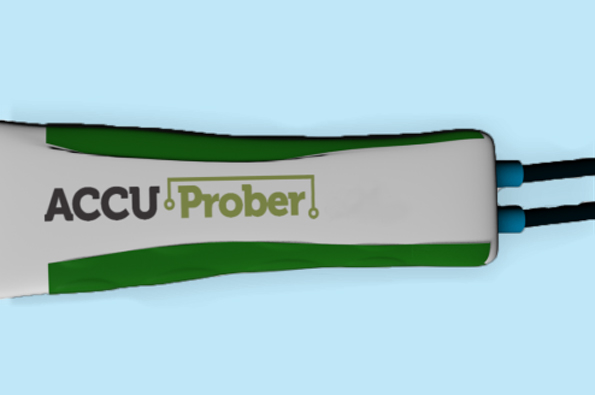

The ACCU-Prober HF is a high-frequency test system available for measurements through 30 GHz in standard versions and to 50 GHz in high-frequency versions. These high-frequency probers are suitable for controlled-impedance testing of attenuation, propagation delays, and other performance parameters at frequencies to 50 GHz on wired printed-circuit boards (PCBs). They can work with high-speed test equipment, including digital oscilloscopes, to perform high-speed, high-frequency measurements of PCB transmission-line loss based on SET2DIL techniques through 30 GHz and SPP test methods through 50 GHz.

Introbotix, Inc., 4208 Balloon Park Rd., Albuquerque, NM 87109; (505) 345-7785 .
