Variable Attenuator Pads 2 to 4 GHz

April 4, 2014
Variable Attenuator Pads 2 To 4 GHz

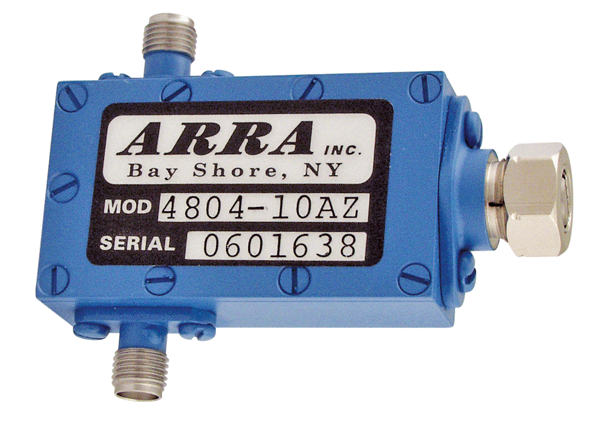

Model 4804-10AZ is a compact variable attenuator designed for use from 2 to 4 GHz. It features a 10-dB attenuation range with 0.1-dB or better resettability from –55 to 85°C. The variable attenuator exhibits maximum VSWR of 1.80:1 with 0.5-dB maximum insertion loss. It is housed in an aluminum package with SMA female stainless-steel connectors. The variable attenuator is rated for 5-W average power-handling capability and 3-kW peak power-handling capability. Additional variable attenuators in the series are available for bands from 1 to 18 GHz with as much as 40-dB attenuation.

ARRA Inc., 15 Harold Court, Bay Shore, NY 11706-2296, (516) 231-8400, FAX: (516) 434-1116, www.arra.com
