Radiometer Aids Fire Detection

March 13, 2013
Microwave radiometers offer an appealing, inexpensive solution for temperature sensing.

Download this article in .PDF format
This file type includes high resolution graphics and schematics when applicable.

Safety applications, such as fire detection, are increasingly making use of RF/microwave technology. Microwave radiometers serving as remote temperature sensors have been proposed for surveillance use (e.g., forest-fire prevention in ground-based systems1) and for temperature monitoring in industrial applications (for example, in food industries2 or cement kilns3). The use of microwave radiometers in these applications can overcome the limitations of other technologies, such as infrared (IR) and optical sensors.

Related Articles
High-Resolution AESA Radar Added to Global Hawk Payload
Check For Co-Existence Between LTE And Radar
Sea Radar System Detects Moving Targets While Avoiding Clutter

Microwave radiometers can operate effectively in dusty, smoky, and steamy environments, making the radiometric approach an appealing solution for temperature sensing in harsh environments. In addition, the RF/microwave approach for such sensors offers reduced costs compared to other technologies. To demonstrate the effectiveness of RF/microwave technology for fire detection, a low-cost Ku-band radiometer prototype was designed and tested. The results confirm the validity of the approach and represent a first step toward the realization of a low-cost radiometer suitable for temperature sensing. When used as fire sensor, the receiver has been capable of detecting a fire spot of 0.09 m2 area at a distance of 3 m with a 20-dBi horn antenna.

Figure 1 presents a schematic diagram of the proposed radiometer. An input single-pole, double-throw (SPDT) switch (SW1) alternatively connects the receiver input to the antenna and to the reference load. The RF section also is comprised of an isolator, a low-noise amplifier (AMP1), a bandpass filter (BP1), and a square-law detector (DET1). Additional low-frequency devices include an amplifier (AMP2) cascaded with the active bandpass filter (BP2), a synchronous AC/DC demodulator, and a lowpass filter (LP1). A modulating square-wave local-oscillator (LO1) source controls both the RF input switch and the synchronous demodulator at a switching rate of fs. An analog-to-digital converter (ADC) at the output of the receiver digitizes processed signals.

1. This block diagram shows the proposed radiometer architecture with its amplified detector.

The receiver is basically a Dicke radiometer, a configuration preferred to a total power radiometer architecture for its improved performance in terms of enhanced achievable resolution.4 Additional features have also been added to the basic Dicke configuration, such as an amplified detector. Compared to a superheterodyne receiver (or standard Dicke architecture), this direct-detection receiver does not require a downconversion mixer or local oscillator (LO) for signal translation. As a result, the receiver design exhibits lower noise temperature and power consumption, simpler structure, and reduced costs compared to a superheterodyne receiver.

Moreover, with respect to a Dicke radiometer architecture, an RF isolator is connected between the output of RF switch SW1 and the input port of low-noise-amplifier (LNA) AMP1. This minimizes variations in the noise figure of amplifier AMP1 due to the effects of the input load (the receiver connected to the antenna or to a reference load), for improved radiometer performance in terms of measurement accuracy. Active filters are used in the video section of the receiver, allowing for low-cost amplification of received modulated input signals. Based on this architecture, a Ku-band radiometer prototype operating at a center frequency of 13 GHz was been designed and assembled. The switching rate, fs, is set to 80 Hz.

The radiometer was assembled entirely with standard commercial RF/microwave components operating at Ku-band frequencies, except for bandpass filter BP1. The main features of these components are listed in the table. All of the standard components have been selected based on a previous performance analysis of the radiometer receiver as a whole. Of primary importance are the low-loss input switch and the low-noise amplifier (LNA). Moreover, the amplifier gain has been selected to provide the required radiometer resolution with a feasible radiometer integration time.

Download this article in .PDF format
This file type includes high resolution graphics and schematics when applicable.

A Closer Look

Download this article in .PDF format
This file type includes high resolution graphics and schematics when applicable.
2. These schematic diagrams show (a) the band-limited amplifier (AMP2) and (b) the multiple-feedback bandpass cell employed in bandpass filter BP2.

The radiometer’s amplified bandpass filter (BP1) consists of a band-limited amplifier (AMP2) cascaded with a bandpass filter (BP2); both are centered at 80 Hz, the receiver switching frequency (fs). The amplifier [Fig. 2(a)] has a 160-Hz 3-dB bandwidth centered at fs. Active bandpass filter BP2 is a second-order Chebyshev circuit [Fig. 2(b)], realized by cascading two multiple-feedback bandpass cells. The filter is designed to provide 0.5-dB pass band ripple, 21.5-Hz equiripple bandwidth, and 60-dB peak gain at the center frequency. Figure 3 shows the measured transfer function of this amplified BPF, with experimental measured results compared with the filter’s computer-simulated response. The measured amplitude gain is 97 dB at the 80-Hz center frequency.

3. The plots show measured (thin line) and simulated (thick line) normalized amplitude gain for the amplified bandpass filter (AMP2 cascaded with BP2).

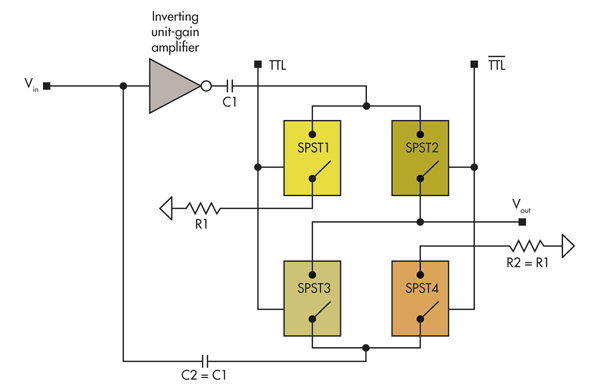

4. This schematic block diagram represents the synchronous AC/DC demodulator.
