Sea Radar System Detects Moving Targets While Avoiding Clutter

Nov. 13, 2013
The X-band AN/SPQ-9B radar system uses a single antenna and processor, receiver/exciter, and transmitter cabinets to detect and track moving targets in the presence of clutter.
To defend against high-speed threats, such as surface-skimming anti-ship missiles, the US Navy recently contracted three radar systems for use in amphibious and Arleigh Burke -class ships. The AN/SPQ-9B multi-mission radar system is designed to detect small, fast-moving targets in the presence of clutter from ocean waves, rain, and land returns. Nor is its performance marred by chaff and jamming.

Produced by Northrop Grumman, the AN/SPQ-9B is an X-band, high-resolution, pulse Doppler, frequency-agile radar. The system comprises three below-deck cabinets (processor, receiver/exciter, and transmitter), a motor generator, and an above-deck, mechanically rotating, electronically stabilized antenna unit. The processor cabinet performs all logical, signal, processing, tracking, and interface functions. The receiver/exciter generates all necessary frequencies while receiving all antenna signals. For its part, the transmitter receives RF pulses from the receiver and amplifies them for antenna output.

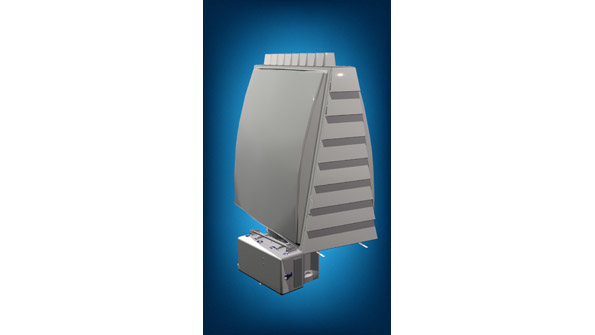

The single antenna has been designed and tested for low-radar-cross-section reflectivity—a requirement for stealth ship designs. It provides 90 dB of clutter rejection in the air channel and 70 dB of clutter rejection in the surface channel, thus providing advanced sub-clutter visibility.

Specifically designed for use in the water, the radar scans out to the horizon and performs simultaneous and automatic air and surface target detection and tracking. It is capable of tracking everything from anti-ship cruise missiles (ASCMs), surface threats, and UAVs to low/slow-flying aircraft and helicopters. This latest series will be installed on the LPD-27, LHA-7, and DDG-79 ships.
