Four-Way Divider Runs DC to 6 GHz

Sept. 18, 2015

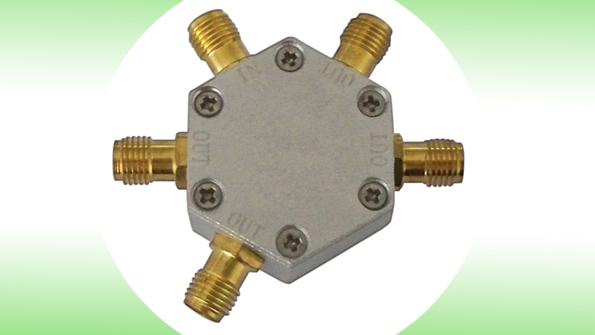

A four-way power divider operates from DC to 6 GHz with SMA connectors.

Model WT-D0093-04 is a resistive, four-way power divider capable of flat amplitude response from DC to 6 GHz. The insertion loss is 12 dB or less with ±1.5 dB flatness across the frequency range. The VSWR is 1.30:1 or less from DC to 3 GHz and 1.50:1 or less from 3 to 6 GHz. The power divider, which handles input power levels to 2 W across its frequency range, is supplied with female SMA connectors on all ports.

Chengdu Microwave Communication Technology Co. Ltd., 11F-1108, Building#1, No. 37, Jiancai Road, Chengdu 61005, China; +86-28-84300332
