Limiter Handles 200 W at 500 MHz

July 25, 2014
This compact limiter handles 200 W CW power from 10 to 500 MHz.

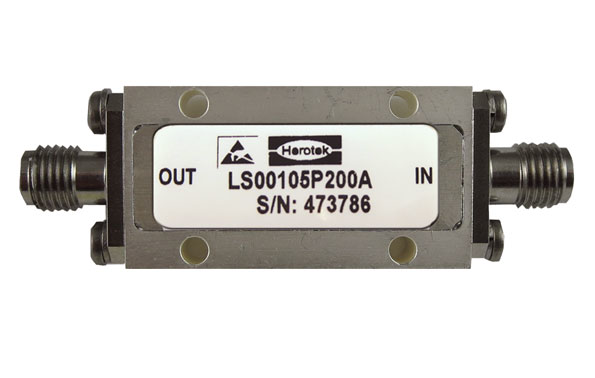

Model LS00105P200A is a rugged coaxial limiter that can handle 200 W continuous-wave (CW) power and peak power levels (for 1 μs pulse widths) as high as 1000 W from 10 to 500 MHz. The limiter exhibits maximum insertion loss of 0.8 dB, with maximum VSWR of 2.2:1 across the full 400-MHz frequency range. The typical limiting threshold for the component is +6 dBm. The typical leakage at a 1-W CW input is +14 dBm, at 10-W CW is +18 dBm, and at 100-W CW is +20 dBm. The limiter is hermetically sealed for military application, and has removable connectors for microwave-integrated-circuit (MIC) assembly.

Herotek, Inc., 155 Baytech Dr., San Jose, CA 95134-2303; (408) 941-8399, FAX: (408) 941-8388
