Spectrum Analyzer Reads Signals to 85 GHz

Aug. 11, 2015
A broadband signal/spectrum analyzer covers 2 Hz to 85 GHz in a single measurement sweep.

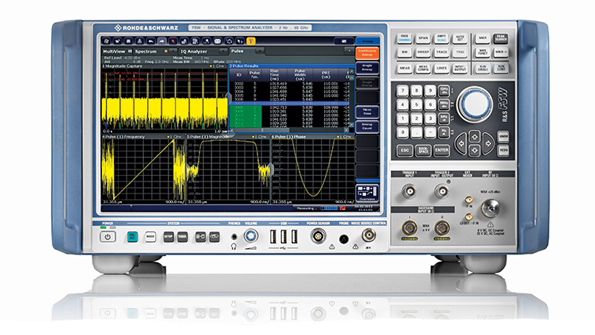

The R&S FSW85 high-performance signal/spectrum analyzer covers a wide frequency range from 2 Hz to 85 GHz in a single sweep. Suitable for studying continuous-wave (CW) and pulsed signals in a wide range of applications areas, from automotive radar to commercial communications systems, the signal/spectrum analyzer simplifies the measurement of high-frequency signals including harmonic signals. It can be equipped with an optional internal analysis bandwidth as wide as 500 MHz for measurement flexibility when analyzing broadband signals in commercial and defense applications. The analyzer is equipped with a large touchscreen and simple control menu structure for ease of use and clarity in viewing results.

Rohde & Schwarz USA, Inc., 6821 Benjamin Franklin Dr., Columbia, MD 21046; (410) 910-7800, FAX: (410) 910-7801
