Analyzers Benefit From 165-MHz Bandwidth

Nov. 20, 2013
Two series of powerful spectrum analyzers have been enhanced with the availability of instantaneous acquisition bandwidths as wide as 165 MHz for measurement ranges to 26.5 GHz.
Download this article in .PDF format
This file type includes high resolution graphics and schematics when applicable.

Test instruments in the RSA5000B series and SPECMON series of real-time spectrum analyzers (RTSAs) from Tektronix already featured considerable measurement power for frequencies as high as 26.5 GHz. Now, however, all of these analyzers have been given a huge boost: All are now available with an analysis bandwidth as wide as 165 MHz. In addition to helping signal capture for any type of signals within the bandwidth of a given analyzer, the wide analysis bandwidth makes it possible to check newer wireless communications standards—such as the widest-bandwidth version of the IEEE 80211ac wireless-local-area-network (WLAN) standard, which has an instantaneous bandwidth of 160 MHz.

The RSA5000B series of RTSAs includes models with top frequencies of 3.0, 6.2, 15.0, and 26.5 GHz (see figure). The SPECMON Series of RTSAs includes models covering 1 Hz to 3.0 GHz, 1 Hz to 6.2 GHz, and a new addition that spans 1 Hz to 26.5 GHz, with resolution bandwidths from 0.1 Hz to 10 MHz for a closer look at a signal of interest. Even without the 165-MHz acquisition bandwidth, these are impressive analyzers, offering +17-dBm third-order intercept at 2 GHz, ±0.3 dB amplitude accuracy to 3 GHz, and -142 dBm/Hz displayed average noise level at 26.5 GHz. Internal noise levels are well controlled, with phase noise of -134 dBc/Hz offset 10 kHz from a 10-MHz carrier and -113 dBc/Hz offset 10 kHz from a 1-GHz carrier.

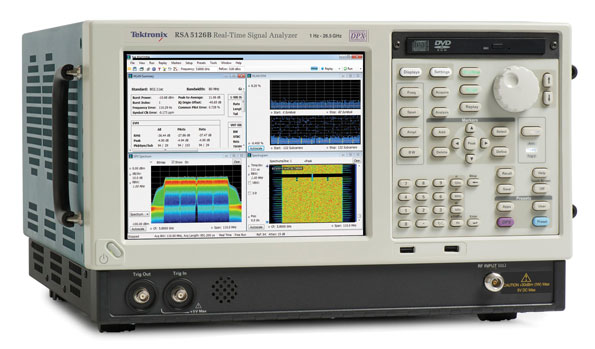

The RSA5000B series of RTSAs is now available with instantaneous acquisition bandwidths as wide as 165 MHz for measurement ranges to 26.5 GHz.

Unlike traditional spectrum analyzers, which are often based on YIG filters, these RTSAs are not victims of the relatively narrow bandwidths of YIG components; they provide wide dynamic ranges at all bandwidths to display continuous-wave (CW), pulsed, and modulated signals. The analyzers can capture short-duration signals and are rated for 100% probability of intercept (POI) for signal durations as short as 2.8 μs. In terms of processing analyzed spectra, the instruments can process more than 390,000 spectrums/s.

In support of capturing a diversity of signals, the analyzers are equipped with generous automatic real-time measurement capabilities, including amplitude modulation (AM), frequency modulation (FM), adjacent-channel leakage ratio (ACLR), complementary cumulative distribution function (CCDF), channel power, occupied bandwidth, and spurious signal measurements. In addition to their capabilities for making advanced pulsed measurements, the analyzers can also measure phase noise and jitter at offsets from 10 Hz to 1 GHz from a carrier frequency.

Captured signals are shown on a swept DPX® spectrum display, which uses color to show signal transients changing over time in the frequency domain. The analyzers can also be set to provide triggered spectrum analysis, showing such measurements as time-qualified power and frequency and triggered frequency-mask measurements. The unique DPX Density Trigger allows the instrument to trigger on any signal seen in the DPX display based on the signal of interest’s density over time, indicated by the different colors shown in the DPX display.

The analyzers can capture a short or long pulse in a pulse train, and can capture frequency-domain events that may only last for a specified time. Triggers can be set on power levels from 0 to -100 dB from a reference level. Runt triggers can be set to capture infrequent pulses. The instruments feature 10.4-in. touchscreen displays and are powered by the Microsoft Windows 7 operating-system (OS) software.

Tektronix Inc., 14150 SW Karl Braun Dr., P.O. Box 500, Beaverton, OR 97077; (800) 833-9200.
