Phase Shifter Tunes C-Band Radars

Nov. 20, 2012
This digital phase shifter provides stable phase and amplitude performance for C-band radar applications from 5 to 6 GHz.

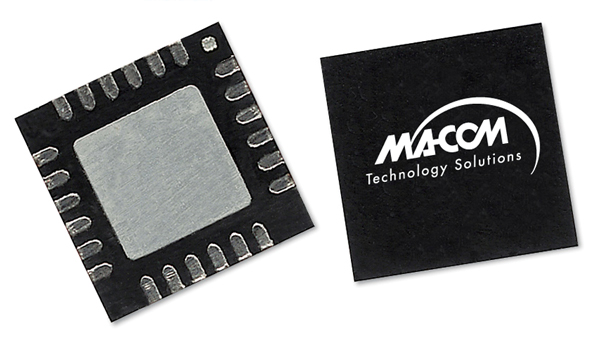

Model MAPS-011008 is a digital phase shifter from M/A-COM Technology Solutions for C-band radar applications from 5 to 6 GHz. It provides a phase adjustment range of 360 deg. with step size of 5.6 deg. The phase shifter promises ±3 deg. root-mean-square (RMS) phase accuracy across its frequency range. The phase shifter achieves an input third-order intercept point of +48 dBm. Insertion loss is only 4 dB in any phase state, with attenuation variations held to ±0.5 dB or less. The compact phase shifter is housed in a 4-mm 24-lead PQFN package. It is powered by means of a +5-VDC serial or parallel control line.

M/A-COM Technology Solutions, Inc., 100 Chelmsford St., Lowell, MA 01851; (800) 366-2266, (978) 656-2500,
