BPSK Transmitter Module Supports 600- to 9,600-Bit/s Data Rates

Jan. 6, 2020
The module generates in-phase and quadrature baseband signal outputs, making it possible to upconvert to a suitable RF carrier frequency.

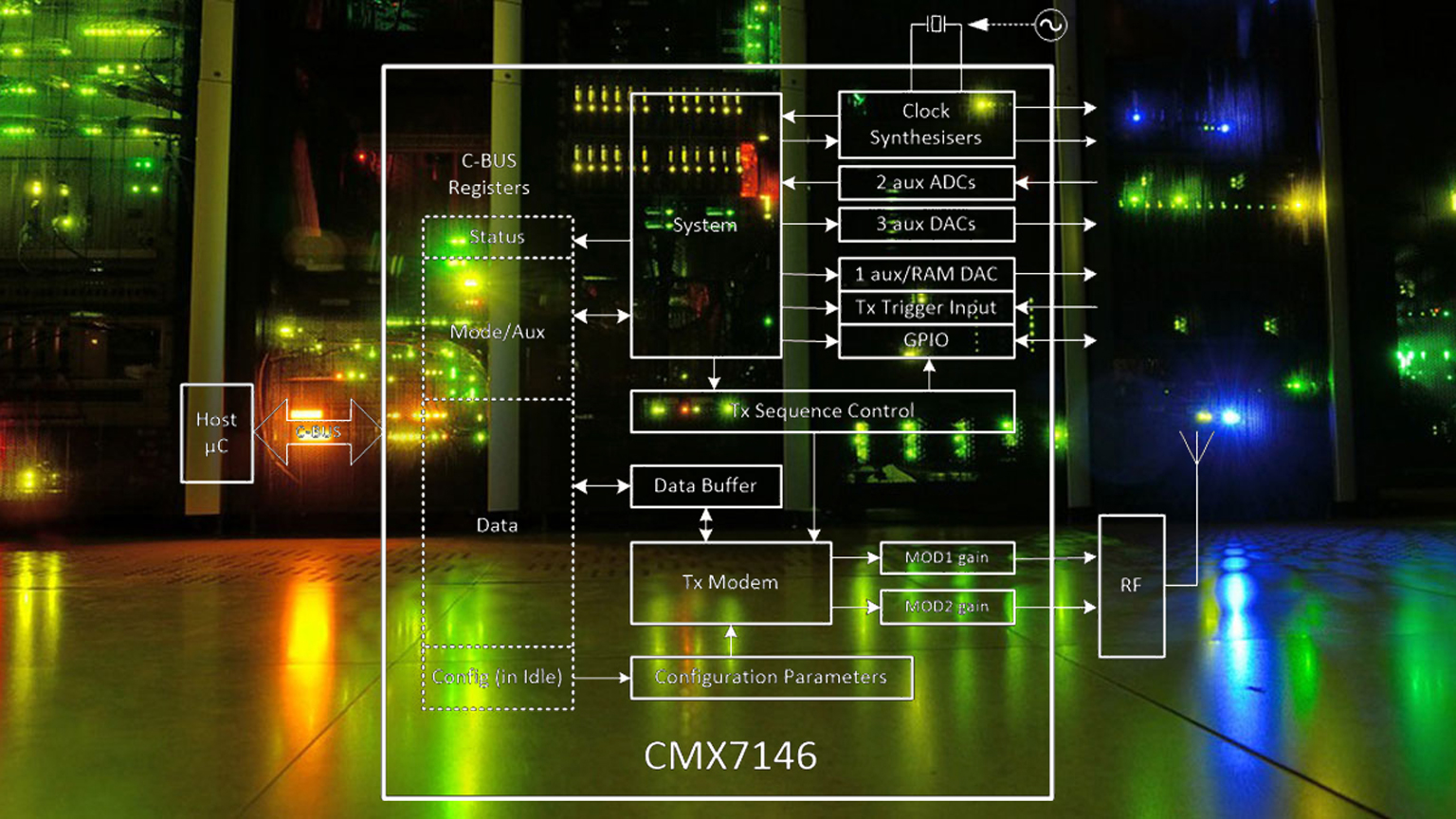

The CMX7146 from CML Microcircuits is an integrated Tx module for use with binary phase-shift keying (BPSK) and differential BPSK modulation systems. The chip is able to generate in-phase and quadrature baseband signal outputs, which can then be used by the designer to upconvert to an RF carrier frequency most suitable for the application. Data rates supported include 600/1200/2400/3600/4800/9600 bits/s. The data input supports raw bits as well as preloaded messages with a transmit trigger for precise transmit timing options. A power-amplifier ramping DAC also can be used to create transmission bursts with up to 13 bytes per burst.

The part comes in a 48-pin QFN package and is configured through an SPI interface. Furthermore, it is low power, consuming 7 mA with a 1200-bit/s data output and 15 mA with a 9600-bit/s output.

CML Microcircuits Ltd., Oval Park, Langford, Maldon, Essex, CM9 6WG, England; phone: +44 (0)1621 875500
