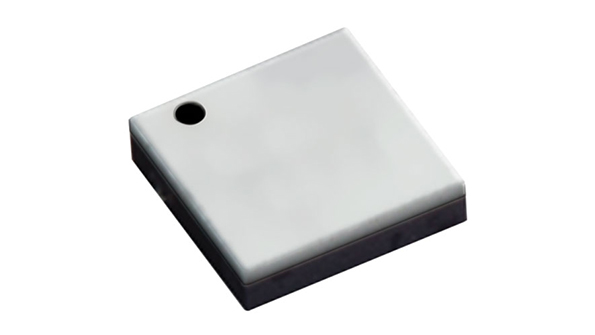

    Image courtesy of Marki Microwave.
    1. Technologies
    2. Components
    3. Active components

    LO Driver Amp Boosts 1 to 26.5 GHz

    June 8, 2015
    A broadband amplifier boosts mixer LO signals from 1.0 to 26.5 GHz.
    MWRF Staff
    Related To: Microwaves & RF

    Suitable for working with a variety of diode-based mixers, model ADM-0126MSM is a broadband local-oscillator (LO) driver amplifier that delivers +17-dBm power from 1.0 to 26.5 GHz. In saturated mode, it can also be used as a square-wave LO amplifier as needed. It reaches its rated output-power levels with +8 to +12 dBm input power and offers 11-dB typical small-signal gain with typical 4-dB noise figure. The typical return loss is 10 dB. Typical third-order intercept point is +25 dBm. It can be biased with a positive +5 to +8 VDC at 120 mA or operated with an optional -0.2-VDC bias to reduce the current consumption to 85 mA. The LO driver amplifier is supplied in a 4-mm QFN package. A module test board is available for the amplifier, complete with connectors for ease of testing.

    Marki Microwave, 215 Vineyard Ct., Morgan Hill, CA 95037; (408) 778-4200, FAX: (408) 778-4300, email: info@markimicrowave.com.

    Continue Reading
