DLVA Processes Pulses From 6 To 18 GHz

Dec. 13, 2012

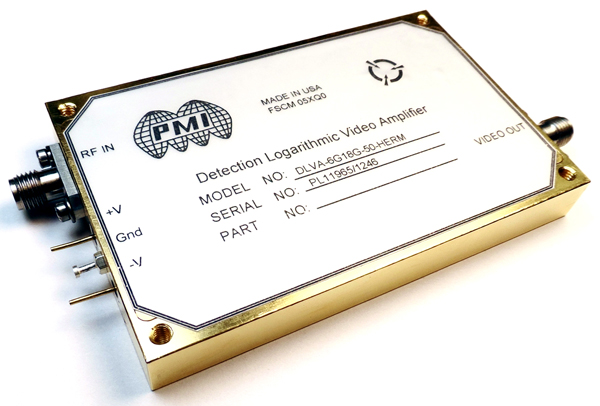

Model DLVA-6G18G-50-HERM is a detector log-video amplifier (DLVA) with frequency range of 6 to 18 GHz.

Model DLVA-6G18G-50-HERM is a detector log-video amplifier (DLVA) with frequency range of 6 to 18 GHz. It offers a logging range of -70 to 0 dBm with tangential signal sensitivity (TSS) of -72 dB. The DLVA, which can handle pulsed signals as short as 100 ns through continuous-wave (CW) signals, has maximum 10%/90% pulse rise time of 50 ns and maximum 90%/10% pulse fall time of 70 ns. The logarithmic slope is 25 mV/dB with logarithmic accuracy of ±4 dB. The DLVA features a recovery time of less than 70 ns with delay time of less than 15 ns. The amplifier draws 400 mA maximum current from a +12-VDC supply and 250 mA maximum current from a -12-VDC supply. It is supplied in a hermetically sealed housing measuring 3.20 x 2.05 x 0.40 in.

Planar Monolithics Industries, Inc., 7311-F Grove Rd., Frederick, MD 21704; (301) 662-5019, FAX : (301) 662-1731, e-mail: [email protected], www.pmi-rf.com.
