VCO Maintains 3200 MHz Output

July 11, 2012

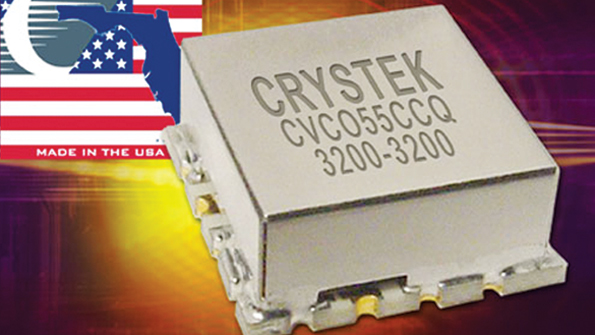

Model CVCO55CCQ-3200-3200 is a voltage-controlled oscillator (VCO) that operates at a center frequency of 3200 MHz. Its frequency is adjusted by a control voltage range of 0.5 to 4.5 V. The oscillator has typical phase noise of −115 dBc/Hz offset 10 kHz from the carrier. It delivers typical output power of +6 dBm with second-harmonic suppression of typically −12 dBc. Pushing and pulling are minimized to 0.3 MHz and 0.1 MHz/V, respectively. The VCO, which is supplied in a 0.5 x 0.5 in. SMD surface-mount package, draws maximum current of 27 mA from a +6-VDC supply. It is ideal for use in digital radios, fixed wireless access, cellular base stations, and in satellite-communications (satcom) systems.

Crystek Corp., 12730 Commonwealth Dr., Ft. Myers, FL 33913; (800) 237-3061, (239) 561-3311, FAX: (239) 561-1025, e-mail: [email protected], www.crystek.com.
