Flexible PIFA Antenna Serves Multiple Wireless Bands

Proliferation of wireless services makes an antenna capable of operation at multiple frequency bands very attractive. For that reason, a planar inverted F antenna (PIFA) was designed for wireless network applications at 1,810, 2,530, 5,260, and 5,500 MHz. A PIFA is a compact form of microstrip antenna (shaped like an inverted letter “f”) that is commonly used in wireless devices, such as cellular telephones. The goal of the design efforts was to reduce the size of the PIFA antenna structure while supporting multiple applications at commonly used frequencies, including for DCS, LTE, UMTS, WiMAX, and wireless-local-area-network (WLAN) systems.

Since modern electronic communications products typically support several wireless standards, such as Third-Generation (3G) or Fourth-Generation (4G) cellular communications and Wi-Fi, availability of a compact antenna capable of operating at multiple wireless bands can mean a significant savings in volume within the final product design. By developing an antenna covering five different radio bands, a great deal of flexibility is provided with a relative small structure. The design was simulated with commercial computer-aided-engineering (CAE) software; simulations show radiation patterns, return loss, and gain with respectable performance in all five bands.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F1

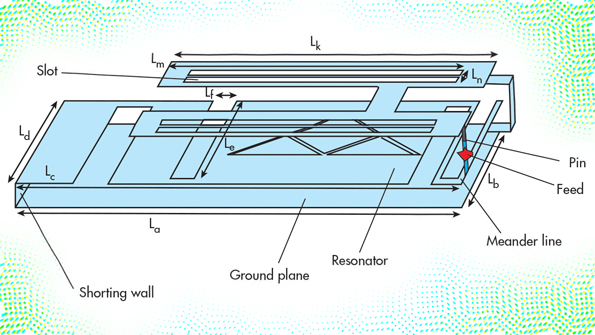

1. This is the geometry of the proposed multiband PIFA antenna, where La = 90 mm; Lb = 38 mm; Lc = 28 mm; Ld = 8 mm; Le = 10 mm; Lf = 2.5 mm; and Lm = 23.5 mm.

Antennas for modern communications devices must support a variety of global communication standards and services. The antennas for these modern communication devices should be capable of operating within as many bands as possible with acceptable return loss and radiation patterns in order to serve multiple cellular and noncellular communication applications. In addition to good electrical performance, the antennas should have compact, low-profile structures that are robust, lightweight, flexible, and easy to manufacture.^1-10 The rapid expansion of wireless communications has created a strong demand for antennas that are small in size and can operate across multiple wireless frequency bands to meet the requirements of modern mobile wireless electronic devices, such as smartphones.^2-8

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F2

2. The plot shows the computed return loss for the multiple-band PIFA antenna.

Through careful design and CAE simulation, it was possible to develop a new PIFA covering three different wireless frequency bands: 5.26 GHz for WLANs, 2.53 GHz for Long-Term-Evolution (LTE) cellular communications, and 1.81 GHz for DCS. In spite of its multiple-band operation, the antenna achieves attractive beamwidth with good radiation efficiency in all three frequency bands.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F3

3. These polar coordinates represent the radiation patterns of the multiple-band PIFA antenna at (a) 1,810 MHz and (b) 2,530 MHz.

The antenna consists of a metal ground plane with overall size of 90 × 38 × 8.05 mm and two resonators using two parallel slots in support of multiple resonant frequencies (Fig. 1). A microstrip circuit connects the resonators to the ground plane. Performance can be optimized by making modifications to the slots.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F4

4. The polar coordinates show the radiation patterns of the PIFA antenna at (a) 5,260 MHz and (b) 5,500 MHz.

The fundamental resonant frequency, f_r, of such an antenna structure can be found from:

f_r = c/[4(h + L)]

where

f_r is the fundamental resonant frequency;

c is the velocity of light in free space;

L is the length of the antenna; and

h is the height of the antenna.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F5

5. This is the computed return loss for the multiple-band PIFA antenna.

The PIFA was simulated by means of Microwave Studio simulation software from Computer Simulation Technology. Simulation results were obtained for the antenna for DCS, LTE, and WLAN wireless frequency bands at resonant frequencies of 1,810, 2,530, 5,260, and 5,500 MHz (Fig. 2 and Table 1).

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F6

6. The plots show the simulated gain of the PIFA antenna as a function of frequency.

Antenna radiation patterns are usually presented in two orthogonal planes: the E- and H-plane radiation patterns relative to the main direction of propagation. The E-plane plots show the locus of points in free space representing the radiated electric € field, while the H-plane shows the points in free space representing the radiated magnetic field (H).¹

Figures 3(a) and (b) show the polar radiation patterns for the PIFA for frequencies of 1.81 and 2.53 GHz, respectively, with resonances within the E and H planes. It can be seen that the radiation patterns are directed along the 0 deg., 0 deg. axis for 1.81 GHz and the 180 deg., 150 deg. axis for 2.53 GHz, resulting in an omnidirectional radiation pattern.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F7

7. The proposed antenna geometry. The dimensions of the antenna are set as: La = 38 mm, Lb = 30 mm, Lc = 38 mm, Ld =30 mm, Le = 28 mm, Lf = 1.5, Lm = 23.5 mm, Ln = 2 mm, Lh = 9 mm, and Lk =28.1 mm.

Figures 4(a) and (b) show the polar radiation patterns for the PIFA for frequencies of 5.26 and 5.50 GHz, respectively, with resonances within the E and H planes. It can be seen that the radiation patterns are directed along the 0 deg., 30 deg. axis for 5.26 GHz and the 0 deg., 0 deg. axis for 5.50 GHz. The width of the antenna was changed to study the effects of the mechanical change, and these can be seen in Fig. 5.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F8

8. This is the computed return loss for the multiple-band PIFA antenna.

Following application of the miniaturization technique, the return loss of the PIFA shows an improvement. The antenna design exhibited increasing gain with increasing resonance frequency (Fig. 6). Table 2 provides details of these antenna gain variations versus frequency.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F9

9. The polar coordinates reveal the computed antenna radiation patterns at (a) 2,170 MHz and (b) 3,400 MHz.

The antenna was implemented to cover six frequency bands with far-field radiation patterns, using meander lines and Sierpenski textile material. Such flexible antennas are suitable for body-worn antenna designs, with multiple-band coverage for the one antenna minimizing the need for additional antennas for wireless coverage. Simulations of the flexible PIFA antenna show acceptable performance for all proposed frequency bands. The overall dimensions of the ground plane widths are 38 mm to 30 mm to 0.05 mm (Fig. 7).

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F10

10. The polar coordinates reveal the computed antenna radiation patterns at (a) 5,100 MHz and (b) 5,300 MHz.

The authors simulated the performance of the multiple-band PIFA in six frequency bands for mobile-phone applications for UMTS (1,920 to 2,170 MHz); WiMAX (3,400 to 3,600 MHz); HiperLAN High Performance Radio LAN (HiperLAN; with frequency bands of 1,710 MHz to 2,170 MHz, as well as 4,800 to 5,800 MHz); 3G (1,885 to 2,200 MHz); and ultrawideband (UWB) applications (6500 MHz).¹³

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F11

11. The polar coordinates reveal the computed antenna radiation patterns at (a) 5,650 MHz and (b) 6,450 MHz.

Simulations performed with the CST software in Figs. 8 through 10 cover DC to 7 GHz. The results show that the PIFA provides amplitude peaks in the radiation patterns at many different frequencies: -16 dB for 2.17 GHz, -28 dB for 3.40 GHz, -25 dB for 5.10 GHz, -22.2 dB for 5.30 GHz, -22 dB for 5.65 GHz, and -35 dB for 6.45 GHz.¹

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 K F12

12. The simulated gain of the PIFA antenna is plotted here as a function of frequency.

The radiation patterns in Figs. 9(a) and (b) demonstrate the dependence of return loss on frequency for the PIFA. The results show the presence of resonances at the frequencies 2.17, 3.40, 5.10, 5.30, 5.65, and 6.45 GHz, with S₁₁ parameter levels of -16 dB, -28 dB, -25 dB, -22.2,- 22 dB, and -35 dB, respectively. show the radiation patterns in polar (E, H) coordinates for 2.17 and 3.40 GHz, with the angular degrees the patterns are directed along (180, 150 deg.) for 2.17 GHz and (0, 0 deg.) for 3.40 GHz.

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 Ktable1

Figures 10 (a) and (b) shows E- and H-plane radiation patterns in polar coordinates computed for 5.10 and 5.30 GHz (for UMTS/WiMAX applications) and how the E-plane and H-plane patterns move, respectively, in the 30, 30 deg. and 0, 0 deg. coordinate directions.⁸

Mwrf Com Sites Mwrf com Files Uploads 2016 07 14 31 Ktable2

The radiation patterns of the multiple-band PIFA change in the directions of the E and H planes for the different frequencies of operation, as shown in Figs. 11(a) (for the E and H planes at 0 and 0 deg., respectively) and (b) (for the E and H planes at 0 and deg., respectively) for 5.65 and 6.45 GHz. The broadband trace in Fig. 12 shows that antenna gain increases with increasing frequency.
