How Bending Affects a Flexible UWB Antenna

A compact antenna maintains high gain and an omnidirectional radiation pattern, even with flexing across frequency ranges complying with UWB frequency allocations in the U.S. and Europe.

Download this article in .PDF format
This file type includes high resolution graphics and schematics when applicable.

Flexible antennas are important components in a growing number of wireless applications, including wearable electronics and sensor systems. However, flexing the antenna from its nominal straight configuration can impact performance, depending on the antenna design, substrate material, and other factors. To meet the need for flexibility, a robust yet compact ultrawideband (UWB) antenna was designed based on microstrip feed approach.

The antenna design measures just 38 × 22 mm2 and is fabricated on flexible liquid crystalline polymer substrate material. It features a resonating structure, which plays a key role in the enhancement of gain across the lower part of the UWB spectrum. The design was simulated with commercial design software and a prototype was built and characterized, with good agreement between simulations and measurements for bent and straight cases.

The markets for flexible wireless devices are rapidly increasing, both with regard to wearable and implantable devices for health-monitoring systems and daily-life wireless devices (e.g., cell phones, tablets, and laptop computers). For this reason, the need for flexible printed antennas has increased in recent years, especially for biomedical applications,1-3 wearable applications,4, 5 and body-mounted applications.6

A number of flexible antenna designs have been attempted on different mechanically flexible substrate materials. Some approaches involve textile substrates,7, 8 others use paper substrates,9, 10 and still others employ thin, flexible dielectric substrates.11-13 A tradeoff always exists between achieving functional conformability and low cost. In the case of circuits fabricated on flexible substrates, the circuit material must be robust and be able to endure wide temperature ranges without degradation in performance.

For flexible antennas, design goals include good radiation parameters in a compact size, with performance maintained throughout bending. In other words, it is very important requirement that they should perform effectively under various bending conditions.14

One application area in urgent need of flexible devices is UWB communications. The enormous bandwidth available, the capacity for high data rates, and the potential for small size and low processing power—along with low implementation costs—present a unique opportunity for UWB to become a widely adopted radio solution for future wireless home-networking technology.15

Such systems include wireless PC peripherals, multimedia connectivity, and wireless network access for mobile computing devices. One example of a flexible radio application is a body area network (BAN), which is becoming increasingly popular for health monitoring in medical applications.

From a frequency spectrum point of view, UWB technology employs bandwidths of greater than 500 MHz (or fractional bandwidths of greater than 20%15), such as 2,500 to 3,000 MHz. Depending on location, various frequency allocations have been made for UWB series.

In the United States, for example, there is 3.1 to 10.6 GHz by the Federal Communications Commission (FCC).16 Europe has multiband orthogonal frequency division multiplexing (MB-OFDM; 3.1 to 4.8 GHz) and direct-sequence UWB (DS-UWB; 6 to 8.5 GHz) by the European Conference for Postal and Telecommunication Administrations (CEPT) Electronic Communication Committee (ECC).17

Antennas designed for these applications should have reasonable and constant radiation properties (such as radiation pattern type, gain, and polarization) within their operating bandwidths.18, 19 Different planar monopole antenna structures have been widely used as UWB antennas due to their ability to provide constant omnidirectional radiation patterns and controlled input impedance parameters over the UWB frequency band. Moreover, planar antennas have simple structures and small size, and can be printed on the very same PCB circuitry as the transmitter and receiver.20-26

Designing flexible antennas requires thin substrates to accommodate the flexing. As a consequence, the antenna’s radiation pattern properties may be degraded due to the thinness of the substrate. Care must be taken in the design of an antenna with thin substrate material to achieve an omnidirectional radiation pattern with good gain across the target operating frequency range. Examples of UWB flexible antennas in planar configurations are presented in refs. 27-31. Success in achieving good performance parameters has made flexible UWB antennas valuable components for wearable, implantable, and body-centric applications.32-34

By using an extremely thin substrate material, it is possible to develop a compact flexible antenna for UWB applications. The antenna is fed with a microstrip transmission line with modified monopole structure. The design was computer-simulated with a commercial full-wave electromagnetic (EM) simulation software program, with measurements of a prototype matching closely with the performance predictions made by the simulations.

The antenna design employs a microstrip-fed circular monopole with resonator at ground level, fabricated on Ultralam 3850 liquid-crystal-polymer (LCP) circuit material from Rogers Corp. The circuit material has dielectric constant (relative permittivity) of 3.14 in the z-axis (thickness) at 10 GHz with loss tangent of 0.0025. The substrate was 100 µm thick and the copper cladding was 18 µm thick.

Fig. 11. These 2D diagrams illustrate the basic geometry of the UWB antenna: (a) the top layer and (b) the bottom layer.



Figures 1a and b show the top and bottom design geometry of the antenna, respectively. The top layer is designed as a circular monopole antenna. The monopole antenna is fed by a single 50-Ω transmission line with feed width, Wf = 0.245 mm. To compensate the low efficiency of an antenna fabricated on such a thin substrate, an incomplete half-disk resonator was added on the bottom of the circular patch antenna.

The additional resonator acts as an incomplete reflector, preserving moderate antenna gain without deforming the desired omnidirectional radiation pattern of the antenna. A stub was added to the resonator to compensate for any further added resonance that may affect the desired UWB bandwidth. Finally, the ground shape of the feeding microstrip transmission line was formed in the shape of a triangle to decrease the size of metal at the ends, which enhances bending functionality.

Fig. 22. These photographs show the fabricated prototype antenna next to a British penny: (a) the bottom layer, (b) the top layer, and (c) the amount of bending possible with the flexible substrate.



Figure 2 compares the fabricated antenna prototype to a coin (a British penny) and in its bent form. Fabrication was performed by means of a carefully controlled photolithographic process, followed by a high-resolution chemical etching process. As can be seen in Fig. 2c, the antenna’s thin structure and bending capabilities make it an excellent candidate for wearable wireless electronic products.

Table

The initial design of the circular monopole diameter was set equal to the wavelength of the center frequency within the selected UWB bandwidth, which was designed as 7.5 GHz. The antenna was further optimized based on investigating the current flow through the antenna radiator over the full bandwidth of the UWB antenna requirements. The antenna’s dimensions are listed in the table; it has a total area of 38 × 22 mm2.

Fig. 33. These simulated plots show magnitude/vector surface current distributions over the top and bottom antenna surfaces for (a) the antenna geometry without the booster at 4 GHz, and (b) the novel UWB antenna design with the bottom booster resonator at 4 GHz.



To explain the role of the additional resonator at ground, the surface current distributions are shown in Fig. 3 with and without the resonator. It shows the direction and distribution of surface currents at 4 GHz induced by the presence of a smaller-radius, ground-resonating structure, which forces the current to coexist more on the edges of the top radiating patch. This enhances the generation of less-deformed radiation patterns at this frequency.

Fig. 44. This 2D radiation pattern was simulated for the normalized antenna XZ-plane gain, for different antenna configurations, at 4 GHz.



The normalized two-dimensional (2D) gain pattern in the X-Y plane of Fig. 4 demonstrates how the initial structure without the stub resonator improves the generation of radiation in the Z+ direction. It also shows how the addition of the stub results in further enhancements to the radiation pattern in that direction.

Fig. 55. The flexible antenna design was simulated for its flexed performance when bent over an imaginary cylinder with radius Rx.

The antenna’s performance was simulated with the commercial Ansoft HFSS finite-element EM simulation software from Ansys. Two versions of the antenna were built and simulated: straight and bent forms. Figure 5 shows the configuration of the bent version of the antenna, with the antenna simulated as being bent around an imaginary cylinder with radius of curvature Rx.

The antenna’s resonant characteristics were confirmed by measurements of the fabricated antenna prototype. Figure 6 shows the measurement setup for antenna matching. A test fixture was used to measure antenna impedance-matching properties, since soldering a 50-Ω SMA connector to the antenna for coaxial measurements proved quite difficult due to the narrow width of the antenna’s microstrip transmission lines.

Fig. 66. The photograph shows the measurement setup for the UWB antenna design, using a test fixture from Inter-Continental Microwave.



Figure 7 compares the simulated reflection coefficients of the antenna for straight and bent (Rx= 40 mm) formats versus the measured reflection coefficient for the straight antenna. Both simulated results have reflection coefficients lower than −10 dB from 4 to 10.7 GHz. Also, the reflection coefficient is lower than −6 dB within the frequency band of 3 to 4 GHz. Both simulated results display a deep resonance close to 7.5 GHz with small difference in amplitude. Furthermore, the measurements show similar values over most of the frequency band of interest.

Fig. 77. Simulations provided the reflection coefficients for the straight and bent (Rx = 40 mm) versions of the UWB antenna, from 2 to 11 GHz, which can be compared to measurements of the straight version of the antenna.



The measured reflection coefficient indicates the strong resonance near 7.5 GHz, and is lower than −6 dB at frequencies starting from 3 GHz and higher. However, despite a decrease in the simulated reflection coefficient of less than −10 dB from 4 GHz and higher, the measured reflection coefficient has a sudden increase to −4 dB in the frequency band of 4.0 to 5.3 GHz before it decreases to less than −10 dB, preserving a pattern close to that of the simulated curves.

This is caused by the difficulty in making measurements due to the thin feeding microstrip line width. However, it is still apparent that the measurement and simulated results are fairly close.

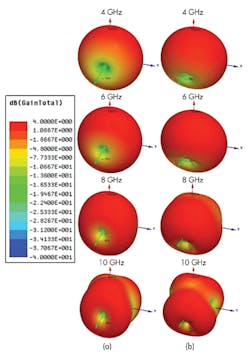

Fig. 88. The 3D gain patterns of the UWB antenna were simulated at different target frequencies for the (a) straight and (b) bent versions of the antenna, bent over an imaginary cylinder with 4-cm radius.

To validate the antenna’s far-field characteristics, three-dimensional (3D) gain radiation patterns were simulated at certain frequencies (4, 6, 8, and 10 GHz), as shown in Fig. 8. To validate that bending the antenna does not affect its radiation patterns, the simulated radiation patterns for the straight antenna (Fig. 8a) are compared to the bent antenna with Rx = 40 mm for the same selected frequencies (Fig. 8b). In both cases, the 3D gain patterns preserve an omnidirectional pattern , as is quite apparent at 4, 6, and 8 GHz. A small deformation in the omnidirectional pattern is noticeable at 10 GHz.

By observing the color bar of the plotted pattern, the antenna has directive gain values that range around −40 dB for nulls at x axis (feeding axis) and 4 dB for boresight direction. For more antenna radiation pattern investigation, the simulated antenna gain at the Z axis is plotted in Fig. 9. As can be seen, the antenna gain reaches a maximum at 7 GHz, where it is 3.5 dB, and a minimum at −1 dB for the frequency band edges within the UWB spectrum.

Fig. 99. The simulated gain of the straight version of the UWB antenna was plotted as a function of frequency.



To analyze the antenna radiation patterns within the UWB frequency range, the current distributions were measured and plotted for the same test frequencies at 4, 6, 8, and 10 GHz (Fig. 10). As can be seen, the radiation pattern degrades with increasing frequency. Also, the current distribution is homogenous over the antenna’s resonant band in ordered harmonics, which explains how the antenna preserves the omnidirectional pattern at these frequencies.

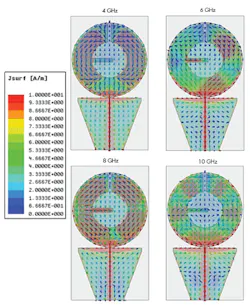

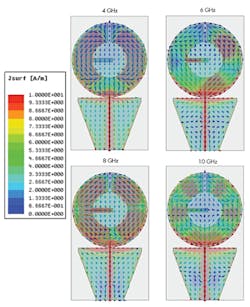

Fig. 1010. The magnitude/vector surface current distributions for the UWB antenna design were simulated for different frequencies.

The antenna design provides near-stable performance with bending in terms of matching and radiation characteristics. The design appears suitable for use in wearable applications, although other issues must also be considered. These include the specific absorption rate (SAR), along with the thermal and dielectric properties of the substrate material when matched with human tissue for medical applications.

In short, the antenna design combines flexibility with a miniature footprint of only 38 × 22 mm2, making it a good fit (literally) for wearable wireless applications. It is designed for use in the upper UWB frequency range from 4 to 10.6 GHz, satisfying at least 82% of the FCC’s UWB frequency regulation and 100% of the ECC’s DS-UWB frequency-range requirements. The antenna maintains an omnidirectional radiation pattern in both straight and bent configurations except at higher frequencies, with high gain throughout.
